MECHANICAL PROBE WITH ELECTRICAL RETRANSMISSION: JE100.

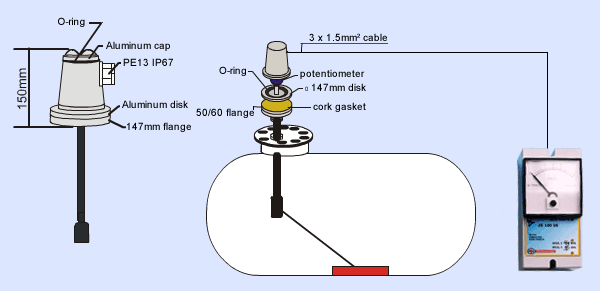

The JE100 probe is a sensor designed to measure hydrocarbons in exterior tanks that are
either underground, overhead, or on ground.
CHARACTERISTICS
The probe is sealed to IP67 thanks to its O-rings.
Sealing between the tank's interior and exterior is ensured by an O-ring that resists
up to 5 bar.
The sensor and receiver (or module) are electrically connected by 3 x 1.5 mm² wire
cables.
OPTIONS
Steel is used in standard manufacturing, but the device can be manufactured in
stainless steel for products such as water (etc.).
A mechanical changeover contact can be placed in the probe's head to display a tank's
level. It is adjusted in the factory. (Please specify ref. JE100 C when ordering).
|
